Agenda

Introduction to TypeScript
Introduction to React
Typed ES2015 React Application
From JavaScript to TypeScript
Use Redux to manage data flow
Use Redux Saga to manage side effects

TypeScript: JavaScript that Scales

Introduction to TypeScript

It is a typed superset of JavaScript that compiles to plain JavaScript.
It offers support for the latest and evolving JavaScript features to help build robust components.
It can be used to develop JavaScript apps which runs on any browser, in Node.js, or in any JavaScript engine that supports ECMAScript 3+.
It is a free and open source programming language.
The compiler tsc is written in TypeScript.
It offers supports for JSX and React.

http://www.typescriptlang.org/

https://github.com/Microsoft/TypeScript

IDE and Editor Support

Language Features

Type annotations
Compile-time type checking
Type inference
Type erasure
Interfaces
Enumerated type
Generic
Namespaces
Tuple
Await

Basic Types (1/2)

let isDone: boolean = false;  // Boolean

// Number
let decimal: number = 6;
let hex: number = 0xf00d;
let binary: number = 0b1010;
let octal: number = 0o744;

let fullName: string = `Carl Su`;  // String
let sentence: string = `Hello, my name is ${fullName}.`;

let list: Array<number> = [1, 2, 3];  // Array

let x: [string, number];  // Tuple
x = ["hello", 10];

Basic Types (2/2)

// Enum
enum Color { Red = 1, Green = 2, Blue = 4 }
let c: Color = Color.Green;

// Any
let notSure: any = 4;
notSure = "maybe a string instead";

// Void
const warnUser = (): void =>
  alert("This is my warning message");

// Type assertions
let someValue: any = "this is a string";
let strLength: number = (someValue as string).length;

Quick Start

npm install -g tslint typescript
npm init
touch index.ts
tslint --init
tslint index.ts
tsc --init
tsc

const add10 = (x: number) => x + 10;
console.log(`add10(3): ${add10(3)}`);

var add10 = function (x) { return x + 10; };
console.log("add10(3): " + add10(3));

TSLint config file

tslint.json:

{
  "rules": {
    "class-name": true,
    "comment-format": [
      true,
      "check-space"
    ],
    ...
  }
}

http://palantir.github.io/tslint/usage/tslint-json/

TypeScript config file

tsconfig.json:

{
  "compilerOptions": {
    "module": "commonjs",
    "target": "es5",
    "noImplicitAny": false,
    "sourceMap": false
  },
  "exclude": [
    "node_modules"
  ]
}

https://www.typescriptlang.org/docs/handbook/tsconfig-json.html

Integrating with Build Tools

Browserify

npm install tsify
browserify main.ts -p [ tsify --noImplicitAny ] > bundle.js

webpack

npm install ts-loader --save-dev

https://www.typescriptlang.org/docs/handbook/integrating-with-build-tools.html

Generate Declarations

tsc -d generates corresponding '.d.ts' file.

index.ts:

const add10 = (x: number) => x + 10;

index.d.ts:

declare const add10: (x: number) => number;

DefinitelyTyped

http://definitelytyped.org/

The repository for high quality TypeScript type definitions.

Get the definitions:

GitHub repository
NuGet package manager
TypeScript Definition Manager

TypeScript Definition Manager

# Search for definitions.
typings search tape

# Find a definition by name.
typings search --name react

# Install non-global typings (defaults to "npm" source).
typings install debug --save

# Install with `--global`.
typings install dt~mocha --global --save

# Search and install by version.
typings info env~node --versions
typings install env~node@6.0 --global --save

Definition Sources

npm - dependencies from NPM
github - dependencies directly from GitHub (E.g. Duo, JSPM)
bitbucket - dependencies directly from Bitbucket
bower - dependencies from Bower
common - "standard" libraries without a known "source"
shared - shared library functionality
lib - shared environment functionality (mirror of shared) (--global)
env - environments (E.g. atom, electron) (--global)
global - global (window.<var>) libraries (--global)
dt - typings from DefinitelyTyped (usually --global)

The Future of Declaration Files

React: JavaScript UI library

React: Declarative

React makes it painless to create interactive UIs.

Design simple views for each state in your application, and React will efficiently update and render just the right components when your data changes.

Declarative views make your code more predictable, simpler to understand, and easier to debug.

React: Component-Based

Build encapsulated components that manage their own state, then compose them to make complex UIs.

Since component logic is written in JavaScript instead of templates, you can easily pass rich data through your app and keep state out of the DOM.

React: Learn Once, Write Anywhere

We don't make assumptions about the rest of your technology stack, so you can develop new features in React without rewriting existing code.

React can also render on the server using Node and power mobile apps using React Native.

Introduction to JSX

JSX is a JavaScript syntax extension that looks similar to XML.

You can use a simple JSX syntactic transform with React.

var Nav;

// Input (JSX):
var app = <Nav color="blue" />;

// Output (JS):
var app = React.createElement(Nav, {color:"blue"});

https://facebook.github.io/react/docs/jsx-in-depth.html

React Toolbox

A set of React components implementing Google's Material Design specification with the power of CSS Modules.

import React from 'react';
import ReactDOM from 'react-dom';
import { Button } from 'react-toolbox/lib/button';

ReactDOM.render(
  <Button label="Hello World!" />,
  document.getElementById('app')
);

http://www.react-toolbox.com/

CSS Modules (1/2)

import React from 'react';
import styles from './table.css';
export default class Table extends React.Component {
  render () {
    return <div className={styles.table}>
      <div className={styles.row}>
        <div className={styles.cell}>A0</div>
        <div className={styles.cell}>B0</div>
      </div>
    </div>;
  }
}

https://github.com/css-modules/css-modules

CSS Modules (2/2)

<div class="table__table___32osj">
    <div class="table__row___2w27N">
        <div class="table__cell___1oVw5">A0</div>
        <div class="table__cell___1oVw5">B0</div>
    </div>
</div>

You have to use camelCase CSS class names.
You have to use styles object whenever constructing a className.
Mixing CSS Modules and global CSS classes is cumbersome.
Reference to an undefined CSS Module resolves to undefined without a warning.

React CSS Modules

Seamless mapping of class names to CSS modules inside of React components.

You are not forced to use the camelCase naming convention.
You do not need to refer to the styles object every time you use a CSS Module.
There is clear distinction between global CSS and CSS Modules.

<div className='global-css' styleName='local-module'></div>

https://github.com/gajus/react-css-modules

Typed CSS Modules

/* styles.css */
@value primary: red;
.myClass { color: primary; }

/* styles.css.d.ts */
export const primary: string;
export const myClass: string;

/* app.ts */
import * as styles from './styles.css';
console.log(`<div class="${styles.myClass}"></div>`);
console.log(`<div style="color: ${styles.primary}"></div>`);

https://github.com/Quramy/typed-css-modules

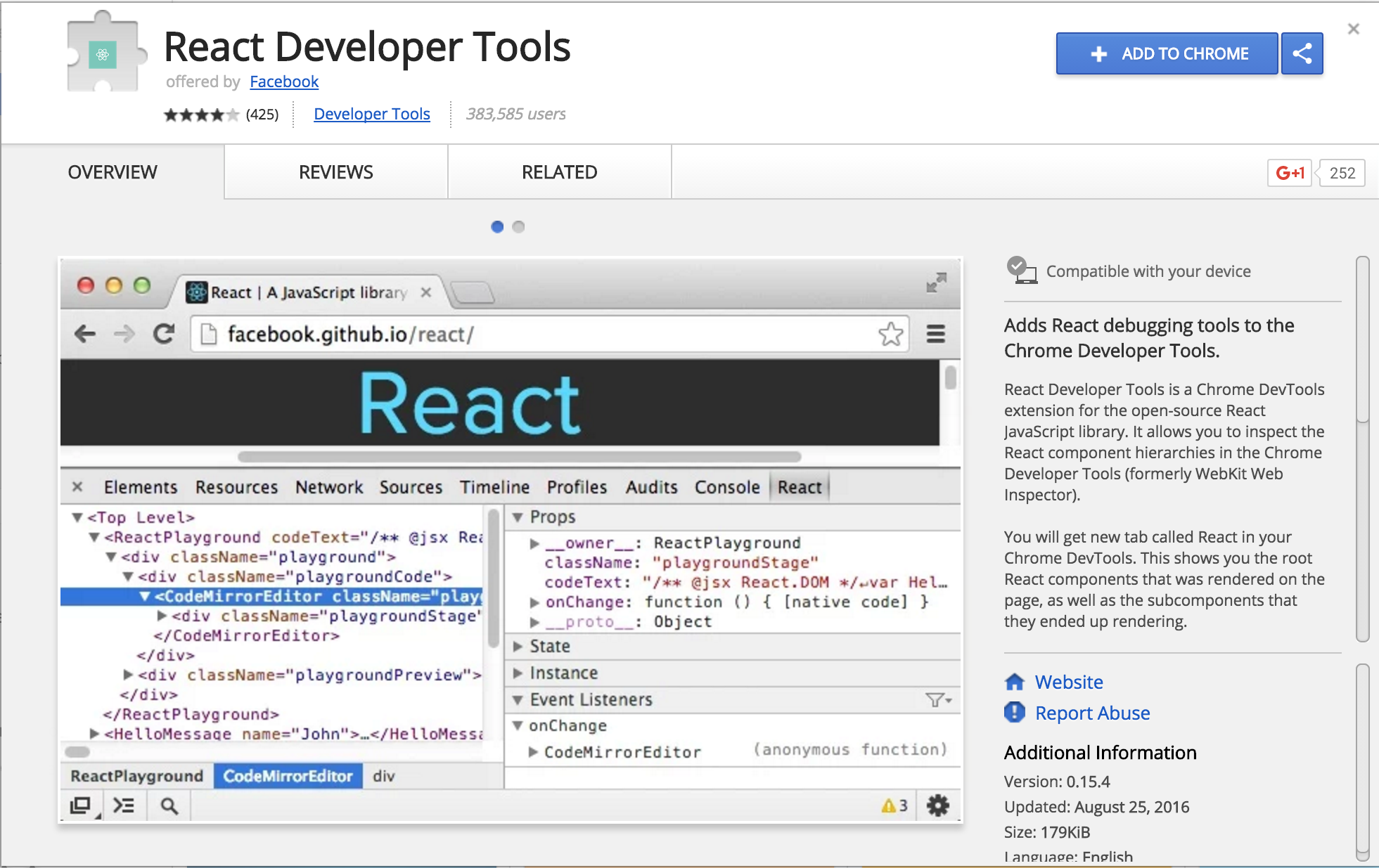

React Developer Tools (Google Chrome)

React Developer Tools (Mozilla Firefox)

Hello from TypeScript and React!

Typed ES2015 React Application

import * as React from "react";
export interface HelloProps { compiler: string; framework: string; }
export class Hello extends React.Component<HelloProps, {}> {
  render() {
    return <h1>Hello from {this.props.compiler} and {this.props.framework}!</h1>;
  }
}

import * as React from "react";
export class Hello extends React.Component {
  render() {
    return React.createElement(
      "h1", null, "Hello from ", this.props.compiler, " and ",
      this.props.framework, "!");
  }
}

From JavaScript to TypeScript

Migrating From JavaScript (1/2)

Migrating from JavaScript to TypeScript:

Add TypeScript config file.
Change file extension from .jsx? to .tsx?.
Supress errors using any.
Write new code and make as little use of any as possible.
Use ambient definitions for third party JavaScript code.
Declare missing modules (e.g.: declare module "humps";).
Declare non-js resources (e.g.: declare module "*.css";).

https://basarat.gitbooks.io/typescript/content/docs/types/migrating.html

Migrating From JavaScript (2/2)

Including .jsx? files with --allowJs:

tsconfig.json:

{
  "compilerOptions": {
    "module": "es2015",
    "target": "es2015",
    "allowJs": true,
  }
}

https://medium.com/@clayallsopp/incrementally-migrating-javascript-to-typescript-565020e49c88

Redux: Predictable State Container

Motivation

Our code must manage more state than ever before.

This complexity is difficult to handle as we're mixing two concepts that are very hard for the human mind to reason about: mutation and asynchronicity.

Redux attempts to make state mutations predictable by imposing certain restrictions on how and when updates can happen.

These restrictions are reflected in the three principles of Redux.

http://redux.js.org/docs/introduction/Motivation.html

Three Principles

Redux can be described in three fundamental principles:

Single source of truth
State is read-only
Changes are made with pure functions

Single source of truth

The state of your whole application is stored in an object tree within a single store.

console.log(store.getState());

{
  visibilityFilter: 'SHOW_ALL',
  todos: [{
    text: 'Consider using Redux',
    completed: true,
  }, {
    text: 'Keep all state in a single tree',
    completed: false
  }]
}

State is read-only

The only way to change the state is to emit an action, an object describing what happened.

store.dispatch({
  type: 'COMPLETE_TODO',
  index: 1
})

store.dispatch({
  type: 'SET_VISIBILITY_FILTER',
  filter: 'SHOW_COMPLETED'
})

Changes are made with pure functions

To specify how the state tree is transformed by actions, you write pure reducers.

export const todos = (state = [], action) => {
  switch (action.type) {
    case 'ADD_TODO': return state;
    case 'COMPLETE_TODO': return state;
    default: return state;
  }
}

import { combineReducers, createStore } from 'redux';
import { visibilityFilter, todos } from './reducers';
let reducer = combineReducers({ visibilityFilter, todos });
let store = createStore(reducer);

Glossary

State
Action
Reducer
Dispatching Function
Action Creator
Async Action
Middleware
Store

http://redux.js.org/docs/Glossary.html

Redux DevTools

https://github.com/gaearon/redux-devtools

When should I use Redux?

https://twitter.com/dan_abramov/status/699241546248536064

redux-saga: Side Effect Manager

redux-saga: Hello Sagas!

Hello Sagas! (1/2)

We will write our 'Hello, world' version for Sagas.

Create a file sagas.ts then add the following snippet:

export function* helloSaga():
 IterableIterator<void> {
  console.log("Hello Sagas!");
}

https://yelouafi.github.io/redux-saga/docs/introduction/BeginnerTutorial.html

Hello Sagas! (2/2)

In order to run our Saga, we need to:

create a Saga middleware with a list of Sagas to run
connect the Saga middleware to the Redux store

We will make the changes to main.tsx:

import { createStore, applyMiddleware } from "redux";
import createSagaMiddleware from "redux-saga";
import { helloSaga } from "./sagas";

const sagaMiddleware = createSagaMiddleware();
const store = createStore(reducer, applyMiddleware(sagaMiddleware));
sagaMiddleware.run(helloSaga);

redux-saga: Making Async Calls

Making Asynchronous Calls (1/5)

We'll provide an additional callback onIncrementAsync to the UI component Counter.tsx:

interface CounterProps {
  value: number;
  onIncrement(): { type: string };
  onDecrement(): { type: string };
  onIncrementAsync(): { type: string };
}

const Counter = ({value, onIncrement, onDecrement, onIncrementAsync}: CounterProps) =>
  <div>
    {" "}
    <button onClick={onIncrementAsync}>Increment after 1 second</button>
    <hr />
    <div>Clicked: {value} times</div>
  </div>

Making Asynchronous Calls (2/5)

We should connect the onIncrementAsync of the Component to a Store action.

We will modify the main.tsx module as follows:

function render() {
  ReactDOM.render(
    <Counter
      onIncrementAsync={() => action("INCREMENT_ASYNC")}
    />,
    document.getElementById("root")
  );
}

Making Asynchronous Calls (3/5)

Add the following code to the sagas.ts module:

import { takeEvery, delay } from "redux-saga";
import { call, put, Effect } from "redux-saga/effects";

// Our worker Saga: will perform the async increment task
export function* incrementAsync(): IterableIterator<Effect> {
  yield call(delay, 1000);
  yield put({ type: "INCREMENT" });
}

// Our watcher Saga: spawn a new task on each INCREMENT_ASYNC
export function* watchIncrementAsync() {
  yield* takeEvery("INCREMENT_ASYNC", incrementAsync);
}

Making Asynchronous Calls (4/5)

Now we have 2 Sagas, and we need to start them both at once.

To do that, we'll add a rootSaga that is responsible for starting our other Sagas.

In the same file sagas.ts, add the following code:

// single entry point to start all Sagas at once
export default function* rootSaga() {
  yield [
    helloSaga(),
    watchIncrementAsync()
  ];
}

Making Asynchronous Calls (5/5)

This Saga yields an array with the results of calling our two sagas, helloSaga and watchIncrementAsync.

Now we only have to invoke sagaMiddleware.run on the root Saga in main.tsx:

import rootSaga from "./sagas";

const sagaMiddleware = createSagaMiddleware();
const store = createStore(...);
sagaMiddleware.run(rootSaga);
